Nagrzewnica kanałowa RAVS
Stosowana do central R-VENT z serii ROTO, ADVANCE i STANDARD w modelach z nagrzewnicą wodną.
Dane techniczne

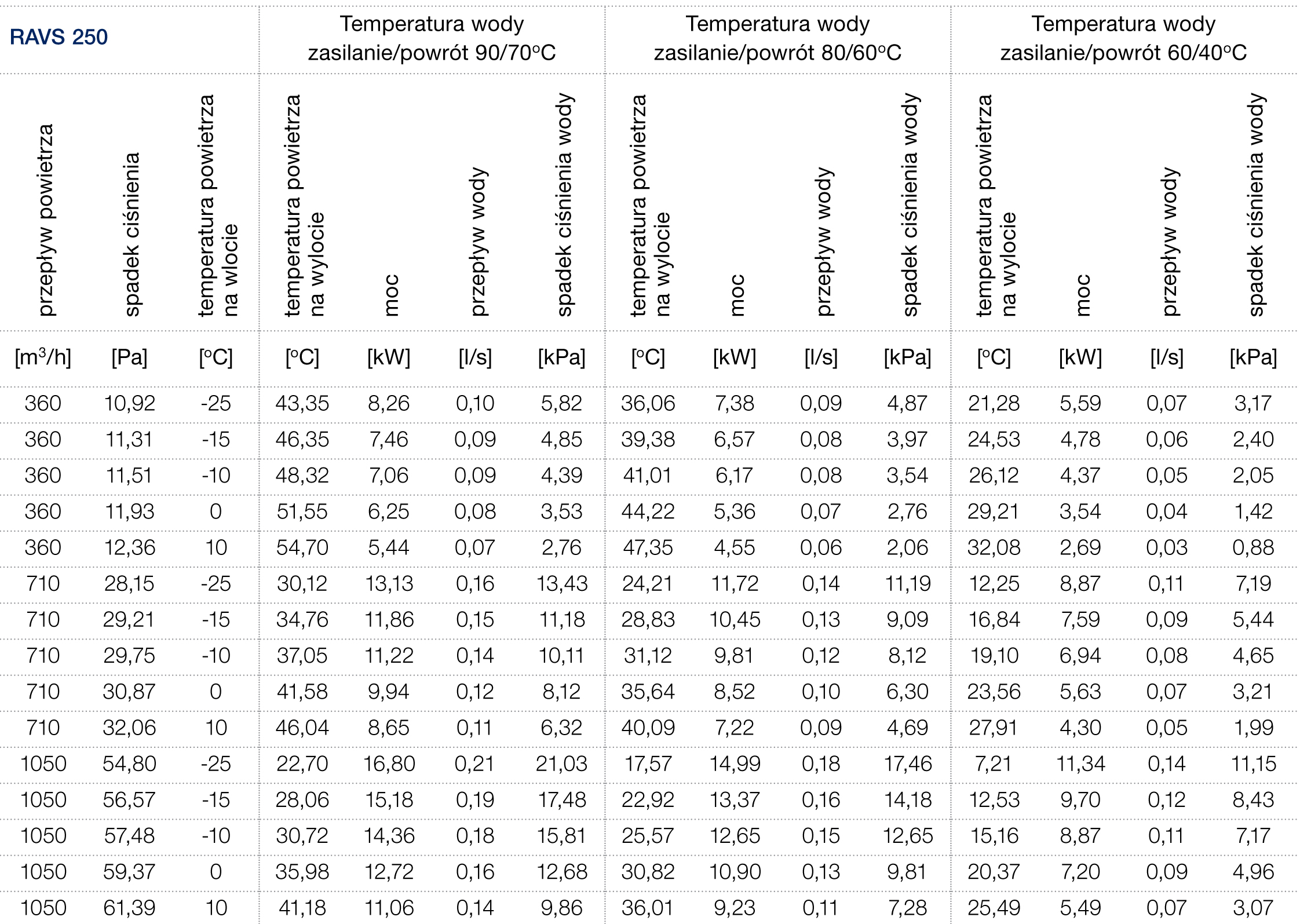

- Nagrzewnica kanałowa RAVS 250

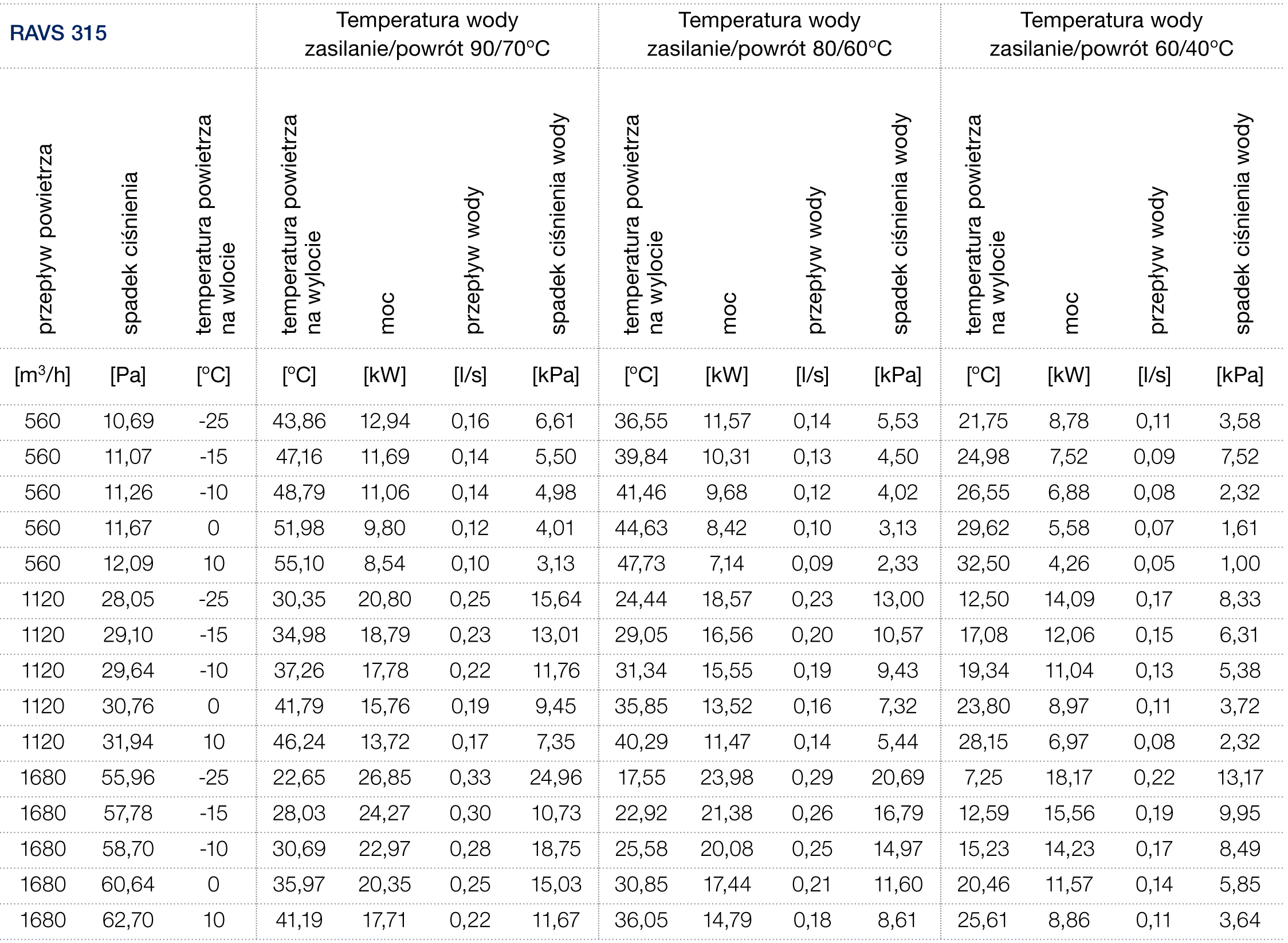

- Nagrzewnica kanałowa RAVS 315

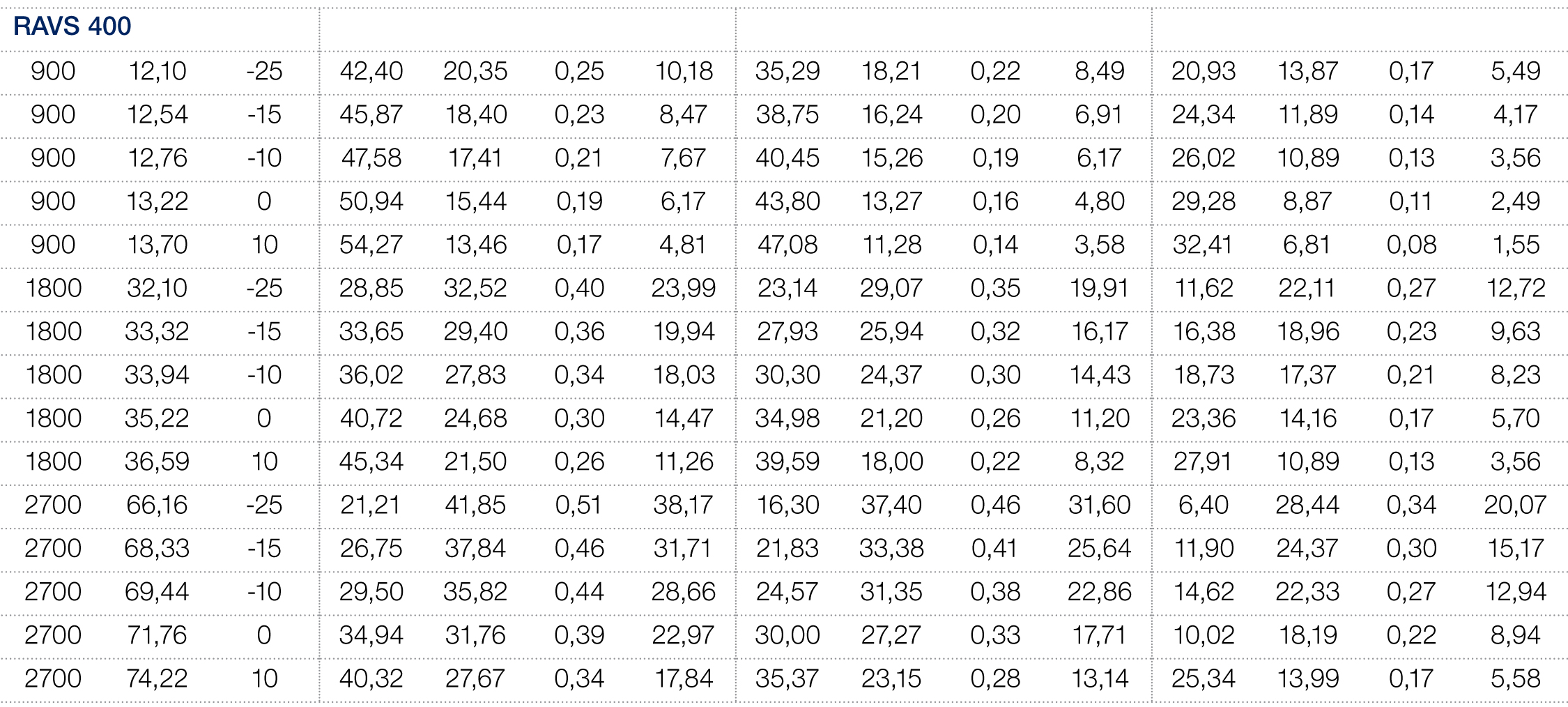

- Nagrzewnica kanałowa RAVS 400

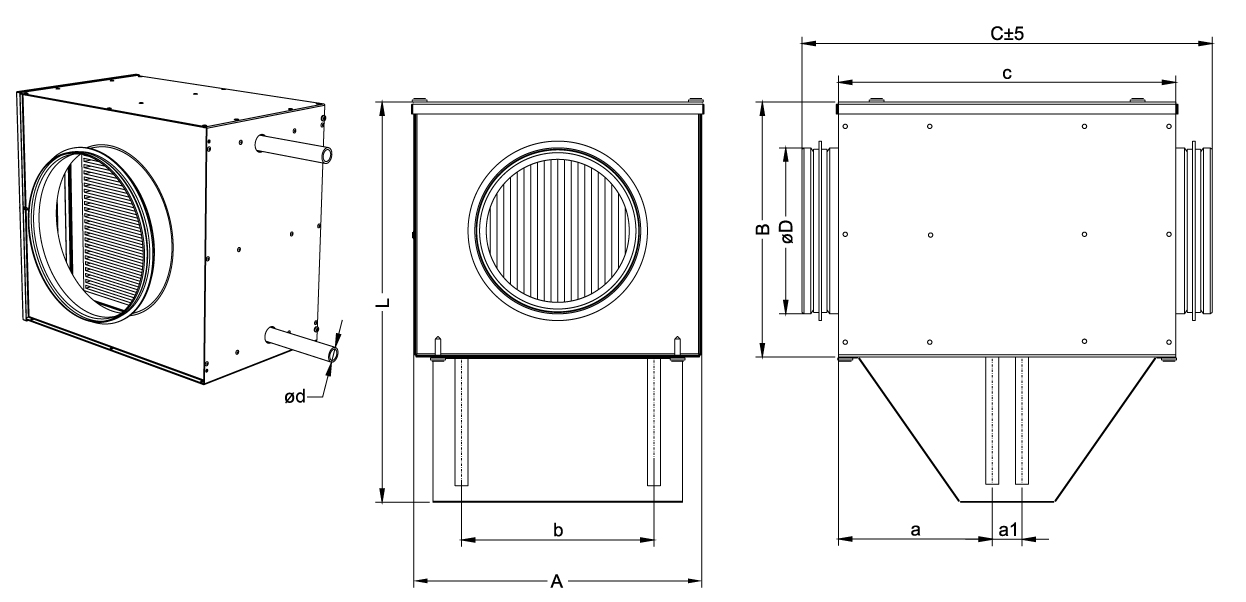

Wymiary nagrzewnicy
| Typ | A [mm] | B [mm] | C [mm] | a [mm] | a1 [mm] | B [mm] | b1 [mm] | L [mm] | øD [mm] | m [kg] |
|---|---|---|---|---|---|---|---|---|---|---|
| RAVS 250 | 364,0 | 395,0 | 342,0 | 110,0 | 30,0 | 288,0 | 21,5 | 531,0 | 250,0 | 12,5 |
| RAVS 315 | 439,0 | 460,0 | 342,0 | 110,0 | 30,0 | 363,0 | 21,5 | 611,0 | 315,0 | 16,0 |
| RAVS 400 | 514,0 | 550,0 | 367,0 | 109,0 | 32,0 | 438,0 | 21,5 | 691,0 | 400,0 | 20,0 |
